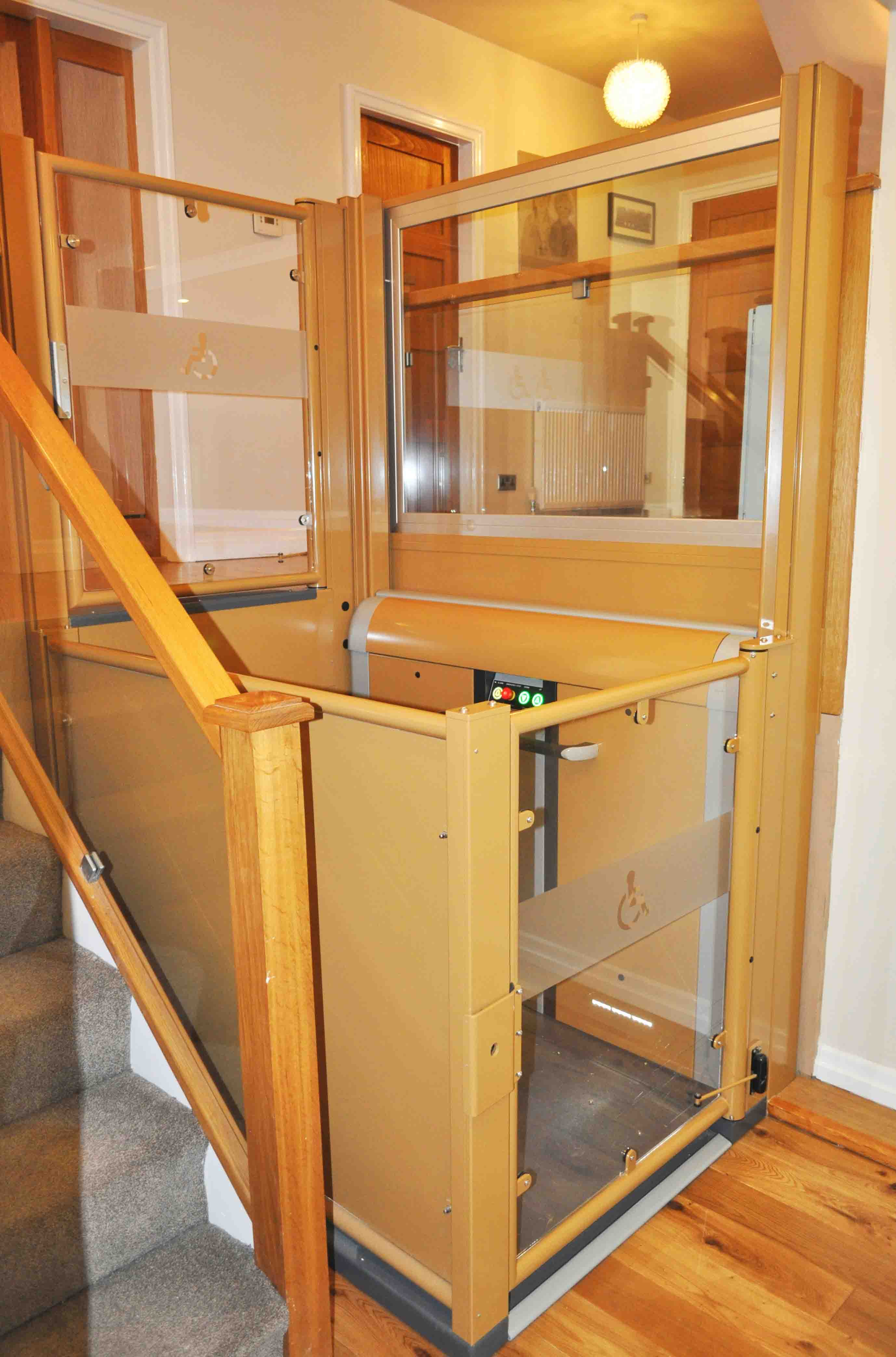

The Liberty Open is our largest 'Open Car' design Platform Lift. Just like our even larger and enclosed Liberty 3, it aims to make no compromise in terms of functionality.
It can travel up to 3 metres, and is suitable for side access. It can be positioned indoors or outdoors, and even comes with a 5 year anti-corrosion warranty!
The Liberty Open boasts a subtle and simple aesthetic, meaning it can blend in with your current design easily. However, you can also customise the lift to make a statement with it if you want; it's up to you.
Designed with many safety features for you and your customers, including sensors that detect obstructions, door interlocking mechanisms, and an internal alarm.
Like our other open platform lifts, we're confident in its ability to cope outdoors with the difficult weather conditions this might entail. As such, we offer, as standard, a 5 year anti-corrosion warranty.
Features and Options
Technical and Downloads
Travel Up To 3m
Stylish open car design
Subtle interior lighting
Landing call stations
Emergency manual lowering
Shallow integral ramp for easy access
Custom colours and finishes available
Keyswitch controls
Glass infill side barrier and gate options
Internal or external installation available
Technical details are all in millimetres. They can be found on our desktop version of the site, or in the Liberty Open Brochure.
Models |
LL800 |
LL900 |
|
LL1100 |
|
---|---|---|---|---|---|
Through-car or Side Access | Through | Through | Through | Side | Side |
Maximum Threshold Height | 3000mm | 3000mm | 3000mm | 3000mm | 3000mm |
Safe Working Load | 300kg | 300kg | 300kg | 300kg | 300kg |
Usable Platform Dimensions (mm) | 1460 x 800 | 1460 x 900 | 1460 x 1100 | 1460 x 1100 | 1460 x 1100 |
Lift Size (mm) | 1520 x 1240 | 1520 x 1340 | 1520 x 1390 | 1520 x 1390 | 1520 x 1460 |
Lift Speed mm/sec | 80 | 80 | 80 | 80 | 80 |
